FluoSolv®

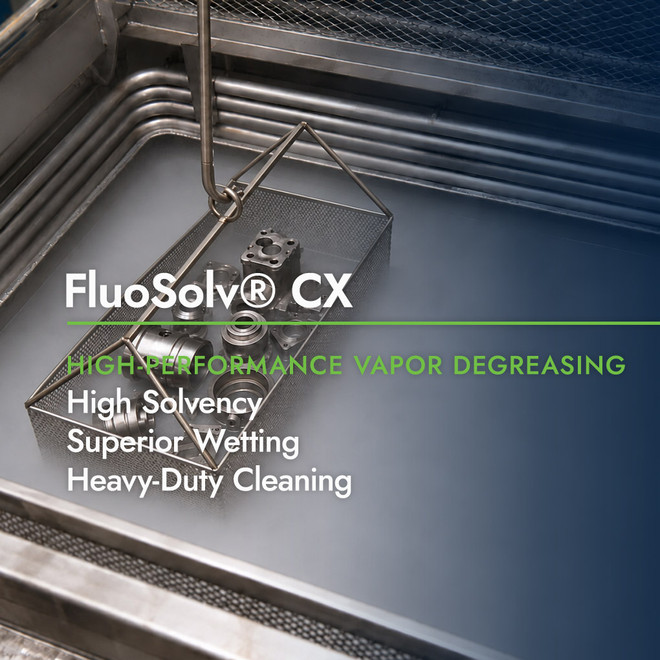

FluoSolv® CX High-Solvency Vapor Degreasing Solvent
No reviews yet
Write a Review
Write a Review
FluoSolv®
FluoSolv® CX High-Solvency Vapor Degreasing Solvent
High Cleaning Power Removes heavy oils, greases & difficult soils High Wetting Index Low surface tension & viscosity promote rapid contaminant removal Broad Material Compatibility Compatible with metals, cera…
$100.00
Product Details
Heavy-Duty Vapor Degreasing
Heavy Oil & Grease Removal
Machined Component Cleaning
Electronics & Precision Components
Aerospace & Defense Components
Critical Component Cleaning
High Cleaning Power
Removes heavy oils, greases & difficult soils
High Wetting Index
Low surface tension & viscosity promote rapid contaminant removal
Broad Material Compatibility
Compatible with metals, ceramics & many engineered materials
Nonflammable
No flash point
Reclaimable & Reusable
Chemical stability enables solvent recovery by distillation
About FluoSolv® CX
FluoSolv® CX is a high-performance vapor-degreasing solvent engineered by NuGenTec for maximum solvency and rapid removal of difficult manufacturing soils. Its proprietary blend of nonflammable hydrofluoroethers (HFEs) and trans-1,2-dichloroethylene (t-DCE) combines high density, low surface tension, low viscosity, and a Kauri-Butanol (KB) value of 95 to deliver exceptional wetting and cleaning performance in demanding precision and industrial cleaning applications.
FluoSolv® CX is designed as a drop-in replacement for trichloroethylene (TCE), n-propyl bromide (nPB), and Chemours Vertrel™ SDG and can replace legacy ozone-depleting solvents including AK-225 and HCFC-141b. Its high Wetting Index promotes close contact between the solvent and component surfaces for rapid contaminant removal, while its chemical stability enables efficient solvent reclamation and reuse. FluoSolv® CX has also successfully completed aerospace conformity testing including Boeing D6-17487 Revision P and ARP 1755B.
Contact NuGenTec technical experts for assistance evaluating FluoSolv® CX as a replacement for TCE, nPB, Vertrel™ SDG, or other high-solvency cleaning fluids in your vapor-degreasing or precision-cleaning process.
Typical Applications
Heavy-Duty Vapor Degreasing Heavy Oil & Grease Removal Machined Component Cleaning Electronics & Precision Components Aerospace & Defense Components Critical Component Cleaning
High Cleaning Power
Removes heavy oils, greases & difficult soils
High Wetting Index
Low surface tension & viscosity promote rapid contaminant removal
Broad Material Compatibility
Compatible with metals, ceramics & many engineered materials
Nonflammable
No flash point
Reclaimable & Reusable
Chemical stability enables solvent recovery by distillation
Typical Properties
| Property | FluoSolv® CX |
|---|---|
| Boiling Point, °C (°F) | 41.0 (105.8) |
| Density at 25°C (77°F), g/ml (lb/gal) | 1.287 (10.74) |
| Flash Point, °C (°F) | None to Boiling Point |
| Surface Tension at 25°C (77°F), dynes/cm | 20.5 |
| Viscosity at 25°C (77°F), cPs | 0.43 |
| Vapor Pressure at 25°C (77°F), kPa | 51.5 |
| Heat of Vaporization at B.P., kJ/kg | 287 |
| Global Warming Potential (GWP), 100-year ITH | 87 |
| Ozone Depletion Potential (ODP), CFC-11 = 1.0 | 0 |
| Volatile Organic Compounds (VOC), g/L | 1094 |
| Kauri-Butanol Value (KB Value) | 100 |
| Acceptable Exposure Limit (AEL), ppm | 200 |
Process Parameters
| Parameter | Typical Operating Range |
|---|---|
| Boil Sump Temperature, °C (°F) | 41.0 (105.8) |
| Primary Cooling Coil Temperature, °C (°F) | 4.0–10.0 (39.2–50.0) |
| Secondary (Sub-Zero) Coil Temperature, °C (°F) | −20.0 to −30.0 (−4.0 to −22.0) |
| Immersion Sump Temperature, °C (°F) | 26.0–36.0 (78.8–96.8) |
| Ultrasonic Frequency, kHz | 20.0–40.0 |
| Dwell Time in Vapor | 30 sec–2 min, or until condensation ceases |
| Immersion Time | 1–8 min; adjust for soil, geometry, and cleanliness requirement |
| Hoist Speed, m/min (ft/min) | ≤3.4 (11.2); slower withdrawal may reduce solvent carryout |
| Freeboard Ratio, minimum | ≥0.75 (1.00–1.25); preferred for improved vapor containment |
Material Compatibility
| Material | Compatibility |
|---|---|
| Aluminum | Compatible |
| Copper | Compatible |
| Stainless Steel | Compatible |
| Titanium | Compatible |
| Brass | Compatible |
| Tungsten | Compatible |
| Neoprene | Compatible |
| Butyl Rubber | Compatible |
| EPDM | Compatible |
| KYNAR (PVDF) | Compatible |
| Viton A&B | Test for Compatibility |
| Kalrez | Test for Compatibility |
| HDPE | Compatible |
| PTFE | Compatible |
| Nylon | Compatible |
| PVC | Compatible |
| Epoxy | Compatible |
| Phenolic | Compatible |
| ABS | Test for Compatibility |
| Acrylic | Test for Compatibility |
| Polycarbonate | Test for Compatibility |
| Other Metals, Elastomers, Plastics | Test for Compatibility |
Available Sizes
| Package Size | Net Weight |
|---|---|
| 55-gallon lined metal drums | 550 lbs |
| 5-gallon lined pails | 52.5 lbs |
