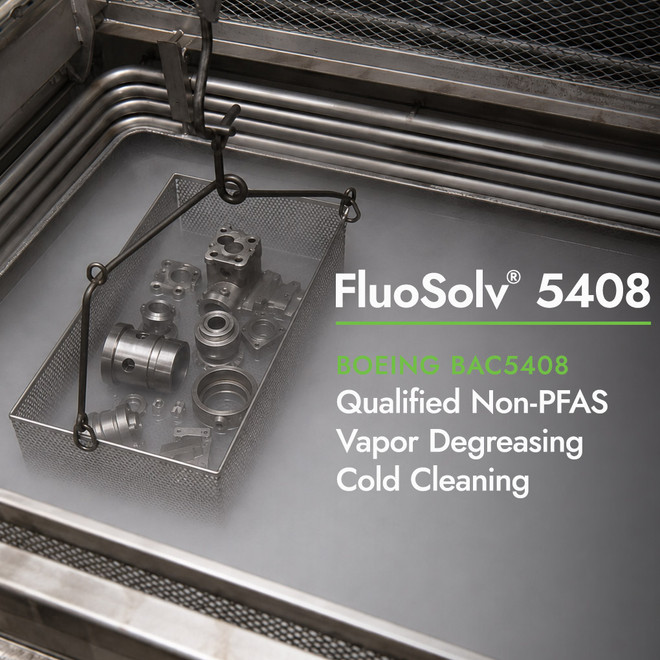

FluoSolv® 5408 Vapor Degreasing Solvent
- SKU:
- fx-5408
High CleaningPower Removes oils, greases, fluxes,and particulates MaterialsCompatible Safe on a variety of metals,plastics, and elastomers Low GlobalWarming Potential Environmentally responsiblefluorinated solvent …
$100.00
Product Details
High Cleaning
Materials
Low Global
Precision
Vapor Degreasing
Precision Cleaning of Metal Components
Electronics Manufacturing
Medical Device Cleaning
Aerospace & Defense Components
Optical & High-Purity Parts Cleaning
High Cleaning
Materials
Low Global
Precision
Need Help Selecting
High Cleaning
Power
Removes oils, greases, fluxes,
and particulates
Materials
Compatible
Safe on a variety of metals,
plastics, and elastomers
Low Global
Warming Potential
Environmentally responsible
fluorinated solvent
Long Bath Life
Resists degradation for
consistent performance
Precision
Cleaning
Ideal for critical applications
About FluoSolv® 5408
FluoSolv® 5408 is qualified to the Boeing BAC5408 specification for vapor degreasing and to SAFRAN DEGREASING SPEC PR-1500 Issue C specification for degreasing. It is currently pending Boeing PS10202 specification for vapor degreasing.
FluoSolv® 5408 is a proprietary blend of nonflammable fluorinated solvents and trans-1,2-dichloroethylene (t-DCE), offering a nonflammable, non-PFAS solution with low Global Warming Potential (GWP) and zero Ozone Depleting Potential (ODP). It is designed for precision vapor degreasing or cold cleaning of heavy-duty oils, greases, lubricants, flux residues, particulates, and other soils from precision components.
FluoSolv® 5408 provides excellent precision-cleaning performance while remaining compatible with a broad range of metals, plastics, and elastomers. It is also a drop-in replacement for many 3M Novec chemistries. Contact our technical experts for information about your specific application.
Typical Applications
Vapor Degreasing Precision Cleaning of Metal Components Electronics Manufacturing Medical Device Cleaning Aerospace & Defense Components Optical & High-Purity Parts Cleaning
High Cleaning
Power
Removes oils, greases, fluxes,
and particulates
Materials
Compatible
Safe on a variety of metals,
plastics, and elastomers
Low Global
Warming Potential
Environmentally responsible
fluorinated solvent
Long Bath Life
Resists degradation for
consistent performance
Precision
Cleaning
Ideal for critical applications
Typical Properties
| Property | FluoSolv® 5408 |
|---|---|
| Boiling Point, °C (°F) | 47.0 (116.6) |
| Density at 25°C (77°F), g/ml (lb/gal) | 1.270 (10.60) |
| Flash Point, °C (°F) | None to Boiling Point |
| Surface Tension at 25°C (77°F), dynes/cm | 15.9 |
| Viscosity at 25°C (77°F), cPs | 0.41 |
| Vapor Pressure at 25°C (77°F), kPa | 44.2 |
| Heat of Vaporization at B.P., kJ/kg | 282 |
| Global Warming Potential (GWP), 100-year ITH | <15 |
| Ozone Depletion Potential (ODP), CFC-11 = 1.0 | 0 |
| Volatile Organic Compounds (VOC), g/L | 1207 |
| Kauri-Butanol Value (KB Value) | 111.5 |
| Acceptable Exposure Limit (AEL), ppm | 200 |
Process Parameters
| Parameter | Typical Operating Range |
|---|---|
| Boil Sump Temperature, °C (°F) | 47.0 (116.6) |
| Primary Cooling Coil Temperature, °C (°F) | 4.0–10.0 (39.2–50.0) |
| Secondary (Sub-Zero) Coil Temperature, °C (°F) | −20.0 to −30.0 (−4.0 to −22.0) |
| Immersion Sump Temperature, °C (°F) | 32.0–42.0 (89.6–107.6) |
| Ultrasonic Frequency, kHz | 20.0–40.0 |
| Dwell Time in Vapor | 30 sec–2 min, or until condensation ceases |
| Immersion Time | 1–8 min; adjust for soil, geometry, and cleanliness requirements |
| Hoist Speed, m/min (ft/min) | ≤3.4 (11.2); slower withdrawal may reduce solvent carryout |
| Freeboard Ratio, minimum | ≥0.75; 1.00–1.25 preferred for improved vapor containment |
Material Compatibility
| Material | Compatibility |
|---|---|
| Aluminum | Compatible |
| Copper | Compatible |
| Stainless Steel | Compatible |
| Titanium | Compatible |
| Brass | Compatible |
| Tungsten | Compatible |
| Neoprene | Compatible |
| Butyl Rubber | Compatible |
| EPDM | Compatible |
| KYNAR (PVDF) | Compatible |
| Viton A&B | Test for Compatibility |
| Kalrez | Test for Compatibility |
| HDPE | Compatible |
| PTFE | Compatible |
| Nylon | Compatible |
| PVC | Compatible |
| Epoxy | Compatible |
| Phenolic | Compatible |
| ABS | Compatible |
| Acrylic | Test for Compatibility |
| Polycarbonate | Test for Compatibility |
| Other Metals, Elastomers, and Plastics | Contact Technical Expert |
Available Sizes
| Package Size | Net Weight |
|---|---|
| 55-gallon lined metal drums | 550 lb |
| 5-gallon lined pails | 52.5 lb |
