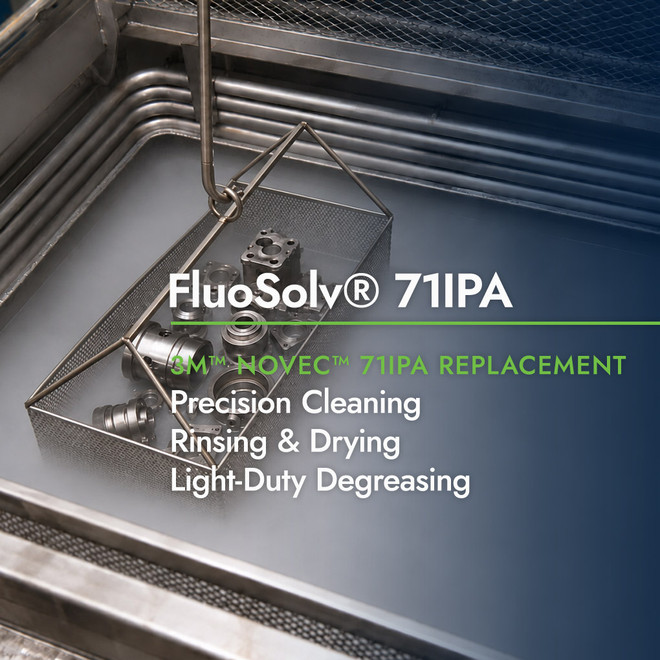

FluoSolv® 71IPA Precision Cleaning & Vapor Degreasing Solvent
No reviews yet
Write a Review
Write a Review
FluoSolv®
FluoSolv® 71IPA Precision Cleaning & Vapor Degreasing Solvent
PrecisionCleaning Removes fingerprints, light oils,greases & particulates Broad MaterialCompatibility Suitable for a wide variety ofmetals, plastics & elastomers Low SurfaceTension Excellent wetting and penet…
$100.00
Product Details
Precision
Broad Material
Low Surface
Vapor Degreasing
Rinsing & Spot-Free Drying
Electronics & Precision Cleaning
Medical Device Components
Particulate & Fingerprint Removal
Light-Duty Metal Cleaning
Precision
Broad Material
Low Surface
Need Help Selecting
Precision
Cleaning
Removes fingerprints, light oils,
greases & particulates
Broad Material
Compatibility
Suitable for a wide variety of
metals, plastics & elastomers
Low Surface
Tension
Excellent wetting and penetration
into complex geometries
Nonflammable
No flash point
True Azeotrope
Maintains consistent composition
during boiling
About FluoSolv® 71IPA
FluoSolv® 71IPA is a high-performance azeotropic cleaning fluid engineered as a direct, drop-in replacement for 3M™ Novec™ 71IPA Engineered Fluid. Formulated from methoxy-nonafluorobutane (HFE-7100) and isopropyl alcohol (IPA), FluoSolv® 71IPA combines the excellent wetting, material compatibility and rapid drying characteristics of a fluorinated fluid with the cleaning effectiveness of IPA.
It is particularly well suited for precision cleaning, rinsing and drying applications involving fingerprints, particulates, light oils, greases and other light soils. Its low surface tension allows penetration into complex geometries and tight spaces, while its azeotropic behavior provides consistent performance in vapor degreasing, immersion, ultrasonic and co-solvent cleaning processes.
Contact NuGenTec technical experts for assistance evaluating FluoSolv® 71IPA as a replacement for 3M™ Novec™ 71IPA in your cleaning process.
Typical Applications
Vapor Degreasing Rinsing & Spot-Free Drying Electronics & Precision Cleaning Medical Device Components Particulate & Fingerprint Removal Light-Duty Metal Cleaning
Precision
Cleaning
Removes fingerprints, light oils,
greases & particulates
Broad Material
Compatibility
Suitable for a wide variety of
metals, plastics & elastomers
Low Surface
Tension
Excellent wetting and penetration
into complex geometries
Nonflammable
No flash point
True Azeotrope
Maintains consistent composition
during boiling
Typical Properties
| Property | FluoSolv® 71IPA |
|---|---|
| Boiling Point, °C (°F) | 54.0 (129.2) |
| Density at 25°C (77°F), g/mls (lbs/gal) | 1.480 (12.35) |
| Flash Point, °C (°F) | None to Boiling Point |
| Surface Tension at 25°C (77°F), dynes/cm | 13.6 |
| Viscosity at 25°C (77°F), cPs | 0.40 |
| Vapor Pressure at 25°C (77°F), kPa | 27.6 |
| Heat of Vaporization at B.P. (kJ/kg) | 145 |
| Global Warming Potential (GWP), /100 year ITH | 320 |
| Ozone Depletion Potential (ODP), CFC-11 = 1.0 | 0 |
| Volatile Organic Compounds (VOC), g/L | 67 |
| Kauri-Butanol Value (KB Value) | 28 |
| Acceptable Exposure Limit (AEL), ppm | 400 |
Process Parameters
| Parameter | Typical Operating Range |
|---|---|
| Boil Sump Temperature, °C (°F) | 54.0 (129.2) |
| Primary Cooling Coil Temperature, °C (°F) | 4.0–10.0 (39.2–50.0) |
| Secondary (Sub-Zero) Coil Temperature, °C (°F) | −20.0 to −30.0 (−4.0 to −22.0) |
| Immersion Sump Temperature, °C (°F) | 39.0–49.0 (102.2–120.2) |
| Ultrasonic Frequency, kHz | 20.0–40.0 |
| Dwell Time in Vapor | 30 sec–2 min, or until condensation ceases |
| Immersion Time | 1–8 min; adjust for soil, geometry, and cleanliness requirement |
| Hoist Speed, m/min (ft/min) | ≤3.4 (11.2); slower withdrawal may reduce solvent carryout |
| Freeboard Ratio, minimum | ≥0.75 (1.00–1.25); preferred for improved vapor containment |
Material Compatibility
| Material | Compatibility |
|---|---|
| Aluminum | Compatible |
| Copper | Compatible |
| Stainless Steel | Compatible |
| Titanium | Compatible |
| Brass | Compatible |
| Tungsten | Compatible |
| Neoprene | Compatible |
| Butyl Rubber | Test for Compatibility |
| EPDM | Compatible |
| KYNAR (PVDF) | Compatible |
| Viton A&B | Test for Compatibility |
| Kalrez | Test for Compatibility |
| HDPE | Compatible |
| PTFE | Compatible |
| Nylon | Compatible |
| PVC | Test for Compatibility |
| Epoxy | Compatible |
| Phenolic | Test for Compatibility |
| ABS | Test for Compatibility |
| Acrylic | Test for Compatibility |
| Polycarbonate | Test for Compatibility |
| Other Metals, Elastomers, Plastics | Test for Compatibility |
Available Sizes
| Package Size (Volume) | Package Size (Net Weight) |
|---|---|
| 55-gallon lined metal drums | 550 lbs |
| 5-gallon lined pails | 52.5 lbs |
