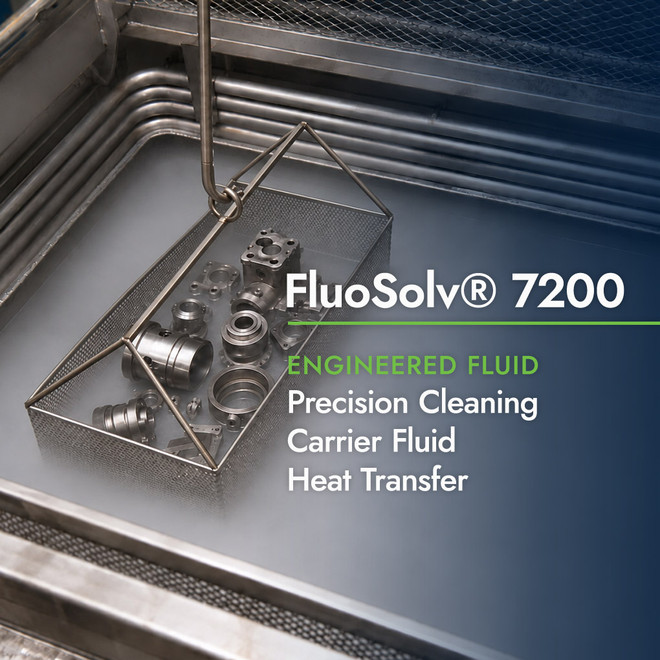

New
FluoSolv®
FluoSolv® 7200 Precision Cleaning & Specialty Fluid
No reviews yet
Write a Review
Write a Review
FluoSolv®
FluoSolv® 7200 Precision Cleaning & Specialty Fluid
Precision CleaningPerformance Removes particulates,fluorolubes & light oils Broad MaterialCompatibility Compatible with metals, ceramics& many engineered materials Low SurfaceTension Excellent wetting and pen…
$100.00
Product Details
Precision Cleaning
Broad Material
Low Surface
Reduced
Precision Cleaning & Rinsing
Lubricant & Coating Deposition
Electronics & Flex Circuit Cleaning
Heat Transfer Applications
Particulate & Light Soil Removal
Specialty Solvent Applications
Precision Cleaning
Broad Material
Low Surface
Reduced
Need Help Selecting
Precision Cleaning
Performance
Removes particulates,
fluorolubes & light oils
Broad Material
Compatibility
Compatible with metals, ceramics
& many engineered materials
Low Surface
Tension
Excellent wetting and penetration
into complex geometries
Nonflammable
No flash point
Reduced
Evaporative Loss
Higher boiling point helps
reduce solvent evaporation
About FluoSolv® 7200
FluoSolv® 7200 is a high-performance hydrofluoroether (HFE) engineered as a direct, drop-in replacement for 3M™ Novec™ 7200 Engineered Fluid. Composed of ethoxy-nonafluorobutane (HFE-7200), FluoSolv® 7200 is a clear, colorless, low-odor fluid combining low surface tension, low viscosity, chemical and thermal stability, nonflammability and broad material compatibility.
Its higher boiling point helps reduce evaporative solvent losses while providing excellent wetting and penetration for precision cleaning, rinsing, cold cleaning and selected vapor-degreasing applications.
Beyond cleaning, FluoSolv® 7200 is well suited as a carrier fluid for fluoropolymers, lubricants and specialty coatings, as well as a dispersion medium, extraction solvent and secondary heat-transfer fluid. Its zero Ozone Depletion Potential (ODP) and stable physical properties make it a versatile alternative to legacy CFC, HCFC, HFC and PFC fluids across a broad range of industrial applications.
Contact NuGenTec technical experts for assistance evaluating FluoSolv® 7200 as a replacement for 3M™ Novec™ 7200 in your cleaning, coating or heat-transfer process.
Typical Applications
Precision Cleaning & Rinsing Lubricant & Coating Deposition Electronics & Flex Circuit Cleaning Heat Transfer Applications Particulate & Light Soil Removal Specialty Solvent Applications
Precision Cleaning
Performance
Removes particulates,
fluorolubes & light oils
Broad Material
Compatibility
Compatible with metals, ceramics
& many engineered materials
Low Surface
Tension
Excellent wetting and penetration
into complex geometries
Nonflammable
No flash point
Reduced
Evaporative Loss
Higher boiling point helps
reduce solvent evaporation
Typical Properties
| Property | FluoSolv® 7200 |
|---|---|
| Boiling Point, °C (°F) | 76.0 (168.8) |
| Density at 25°C (77°F), g/mls (lbs/gal) | 1.430 (11.93) |
| Flash Point, °C (°F) | None to Boiling Point |
| Surface Tension at 25°C (77°F), dynes/cm | 13.6 |
| Viscosity at 25°C (77°F), cPs | 0.61 |
| Vapor Pressure at 25°C (77°F), kPa | 14.5 |
| Heat of Vaporization at B.P. (kJ/kg) | 126 |
| Global Warming Potential (GWP), /100 year ITH | 55 |
| Ozone Depletion Potential (ODP), CFC-11 = 1.0 | 0 |
| Volatile Organic Compounds (VOC), g/L | 0 |
| Kauri-Butanol Value (KB Value) | 10 |
| Acceptable Exposure Limit (AEL), ppm | 200 |
Process Parameters
| Parameter | Typical Operating Range |
|---|---|
| Boil Sump Temperature, °C (°F) | 76.0 (168.8) |
| Primary Cooling Coil Temperature, °C (°F) | 4.0–10.0 (39.2–50.0) |
| Secondary (Sub-Zero) Coil Temperature, °C (°F) | −20.0 to −30.0 (−4.0 to −22.0) |
| Immersion Sump Temperature, °C (°F) | 61.0–71.0 (141.8–159.8) |
| Ultrasonic Frequency, kHz | 20.0–40.0 |
| Dwell Time in Vapor | 30 sec–2 min, or until condensation ceases |
| Immersion Time | 1–8 min; adjust for soil, geometry, and cleanliness requirement |
| Hoist Speed, m/min (ft/min) | ≤3.4 (11.2); slower withdrawal may reduce solvent carryout |
| Freeboard Ratio, minimum | ≥0.75 (1.00–1.25); preferred for improved vapor containment |
Material Compatibility
| Material | Compatibility |
|---|---|
| Aluminum | Compatible |
| Copper | Compatible |
| Stainless Steel | Compatible |
| Titanium | Compatible |
| Brass | Compatible |
| Tungsten | Compatible |
| Neoprene | Compatible |
| Butyl Rubber | Compatible |
| EPDM | Compatible |
| KYNAR (PVDF) | Compatible |
| Viton A&B | Test for Compatibility |
| Kalrez | Test for Compatibility |
| HDPE | Compatible |
| PTFE | Compatible |
| Nylon | Compatible |
| PVC | Compatible |
| Epoxy | Compatible |
| Phenolic | Compatible |
| ABS | Test for Compatibility |
| Acrylic | Test for Compatibility |
| Polycarbonate | Test for Compatibility |
| Other Metals, Elastomers, Plastics | Test for Compatibility |
Available Sizes
| Package Size (Volume) | Package Size (Net Weight) |
|---|---|
| 55-gallon lined metal drums | 550 lbs |
| 5-gallon lined pails | 52.5 lbs |
Need Help Selecting
the Right Product?
Our technical team is here to
help you find the best solution.
