Uniform Surface
Etching
Promotes consistent aluminum and glass etching
Fluoride-Free
Chemistry
Free of fluoride-based etching chemistry
Built-In
Cleaning
Removes soils while improving surface wetting
Wide Process
Window
Operates from ambient to 180°F
Stainless-Steel
Compatible
Safe on stainless steel and many plastics
About NuEtch E3

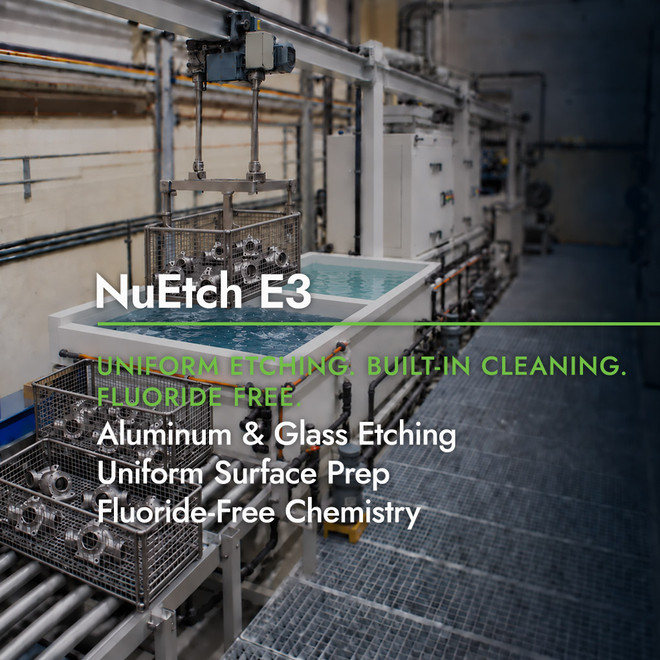

NuEtch E3 is a heavy-duty alkaline liquid etchant engineered for immersion etching of aluminum and glass. Its high-alkalinity chemistry provides effective surface etching while an integrated surfactant system helps remove soils, improve wetting and promote consistent treatment across the workpiece.
Unlike conventional hydrofluoric-acid-based glass and aluminum etchants, NuEtch E3 contains no hydrofluoric acid or other fluoride chemistry. This provides manufacturers with an alternative approach to aggressive surface preparation while maintaining effective etching performance over a broad range of operating conditions.
NuEtch E3 can be used from ambient temperature through 180°F, with concentration, temperature and dwell time adjusted according to the substrate, desired etch profile and degree of surface contamination. Heavily contaminated surfaces may be precleaned before etching when necessary. The formulation does not attack stainless steel and is also suitable for use with most plastic-resin equipment materials.
Typical Applications
Aluminum Surface Etching
Aluminum Component Processing
Uniform Surface Preparation
Cleaning & Etching in One Step
Glass Immersion Etching
Pretreatment Before Finishing
Uniform Surface
Etching
Promotes consistent aluminum and glass etching
Fluoride-Free
Chemistry
Free of fluoride-based etching chemistry
Built-In
Cleaning
Removes soils while improving surface wetting
Wide Process
Window
Operates from ambient to 180°F
Stainless-Steel
Compatible
Safe on stainless steel and many plastics
Typical Properties
| Property | NuEtch E3 |
|---|---|
| Appearance | Amber Liquid |
| Density at 20°C (68°F), g/ml (lb/gal) | 1.375 (11.47) |
| pH, 100.0% | 13.90–14.00 |
| pH, 10.0% | 13.5 |
| Volatile Organic Compounds (VOC), g/L | 0 |
| Flash Point, °C (°F) | None |
| Solubility in Water, g/L | Complete |
| Contains Chlorides | No |
| Foaming Tendency | Moderate Foam |
| Corrosive | Yes |
Process Parameters
| Parameter | NuEtch E3 |
|---|---|
| Use Concentration, % (v/v) | 5.0–25.0 |
| Operating Temperature, °C (°F) | 20.0–82.0 (68.0–179.6) |
| Application Methods | Immersion |
| Recommended Pre-Clean | Mild Alkaline Degreaser (If Needed for Heavy Soils), Followed by DI Water Rinse |
| Process Time, sec–min, range | 5 sec–5 min |
| Process Optimization | Adjust concentration, temperature and dwell time based on contamination and required etch |
Material Compatibility
| Material | Compatibility |
|---|---|
| Aluminum | Compatible |
| Cast Steel | Test for Compatibility |
| Monel | Test for Compatibility |
| Brass | Test for Compatibility |
| Copper | Test for Compatibility |
| Nickel | Test for Compatibility |
| Bronze | Test for Compatibility |
| Hastelloy | Test for Compatibility |
| Stainless Steel | Compatible |
| Carbon Steel | Test for Compatibility |
| Inconel | Test for Compatibility |
| Tantalum | Test for Compatibility |
| Cast Iron | Test for Compatibility |
| Incoloy 825 | Test for Compatibility |
| Titanium | Test for Compatibility |
| Ti6Al4V | Test for Compatibility |
| Zinc | Not Compatible |
| Zinc Plating | Not Compatible |
| Galvanized Surfaces | Not Compatible |
| Magnesium | Not Compatible |
| Other Metals | Test for Compatibility |
Available Sizes
| Package Size | Net Weight |
|---|---|
| 275-gallon tote | 3,163 lb |
| 55-gallon drum | 633 lb |
| 5-gallon pail | 58 lb |
